C-300T Van Chiller Unit

Driven Type:Vehicle Engine Driven Units

Installation:Split Roof Top Mounted

Compressor:DY5H14 138cc/r

Controller:Digital, In Cab

Application:10~18m³

Refrigerant :R134a

Introduction:


Guchen Thermo C-300T van refrigeration units for sale

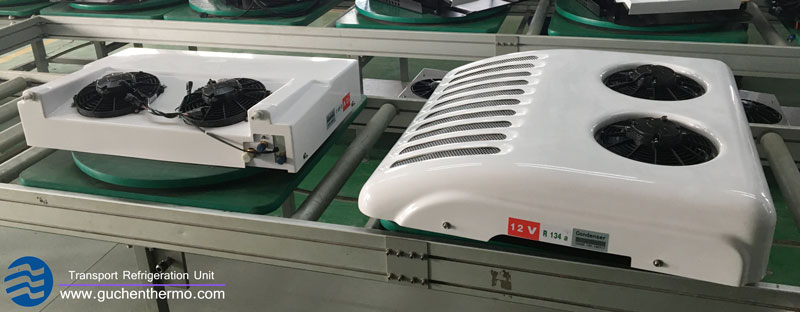

Guchen Thermo C-300T van chiller unit Kits (Evaporator and Condenser)



Guchen Thermo C-300T Van Chiller Units Description

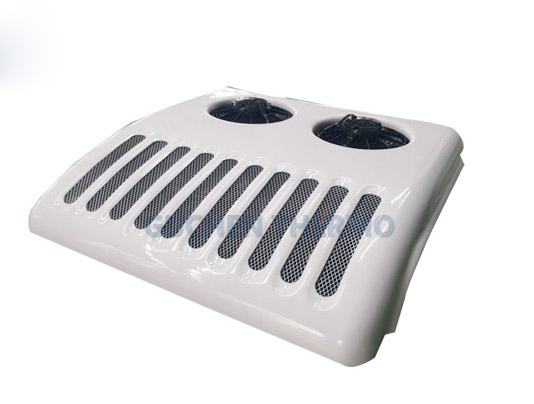

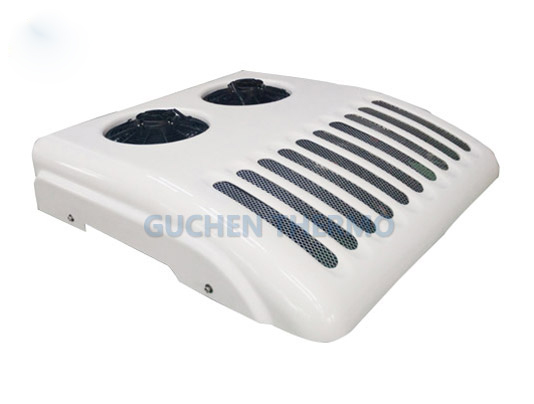

Guchen Thermo C-300T is van refrigeration unit is driven by vehicle engine, and install on the roof to of cargo vans. With R134a Eco-friendly refrigerant, the cooling capacity of C-300T refrigeration system for van is up to 1700W at 0℃. This chiller unit belongs to C series vehicle units, temperature can be range -5℃ to +30℃. As for C-300T chiller units for vans, it has two fans in its evaporator and condenser respectively.

The van refrigeration unit is suitable for 10 -18m³ medium or big van boxes to deliver fresh or chilled cargoes, such as vegetables, fruits, and dairy product, medical. Guchen Thermo C-300T chiller units are very popular with the van bodies factories, vehicle refitting factories, greengrocer distributors and so on.

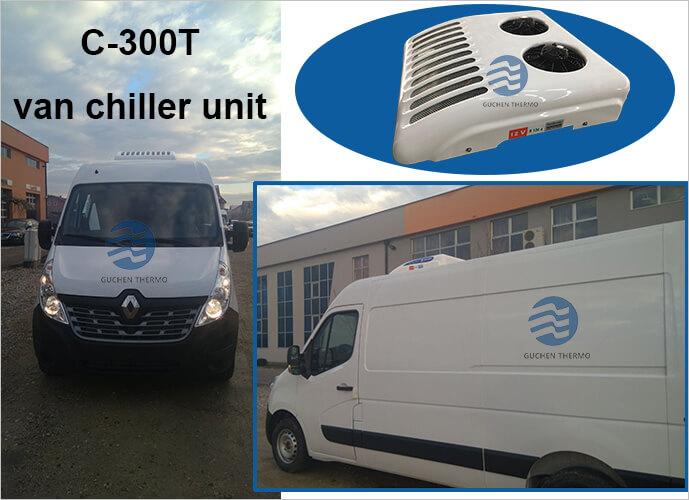

chiller unit for van






Guchen Thermo C-300T Van Chiller Units Unique Features


◆ Adopt R134a Eco-friendly refrigerant

◆ Compared with van freezer units, the prices of Guchen Thermo C series chiller systems are more affordable. Therefore, C-300T model is a better alternative for starters in cold chain business.

◆ Designed for transporting fresh cargoes. It is best suited for medium to large fresh cargo vans.

◆ Suitable for the inner city fresh cargo transportation

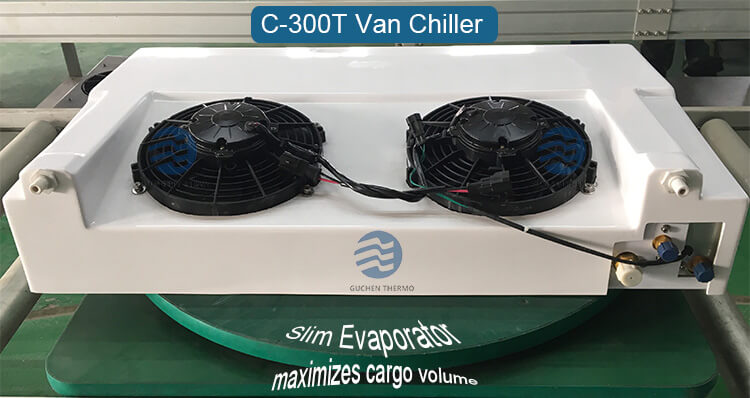

◆ Utra-thin evaporator design

c-300t van chiller unit

Related Models:

Do you have a higher demand to the required temperature? Are you looking for deep-frozen transport refrigeration unit?

Please look and try the following 2 models:



They are van freezer units, temperature range is -25℃ to +25℃ for frozen or deep frozen transportation.

Application:


C-300T van chiller units for deliver fruits and vegetables  C-300T van chiller units for deliver fruits and vegetables  C-300T van chiller units installation on the big cargo vans

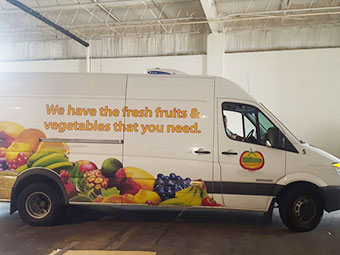

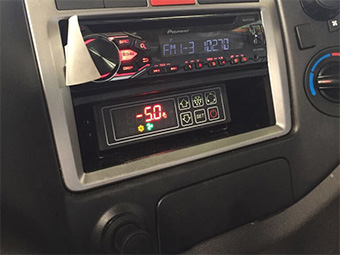

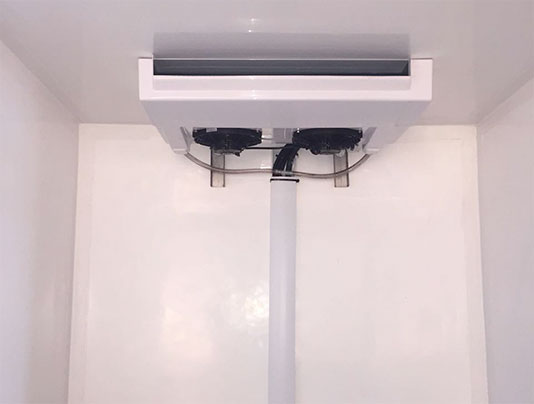

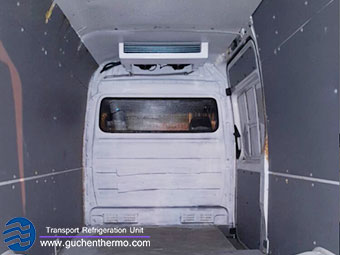

Here is a piece of installation photos from Guchen Thermo's customer. The C-300T van chiller units apply on the 15m³ cargo vans, used for deliver fresh fruits and vegetables. In the first photo, you can see the condenser is on the roof top of cargo vans, in the second photo, it is evaporator in the inner side of cargo vans. Evaporator adopts aluminum foil with internal ridge copper tube coil, which can help increase 30% heat exchange to improve cooling performance. In the third photo, you can see temperature in C-300T van refrigeration units are down to -5℃ in the electric control system.

--- Guchen Thermo 10 sets of C-300T and 10 sets of C-200T Van Refrigeration Units to Lebanon Project

Technical Data:


Model  C-300T

Temperature Range In Container

-5℃ ~ +30℃ / -23℉ ~ +86℉

Cooling Capacity

0℃

+32℉

2700W / 2322Kcal/h / 9212BTU

Driven Model

Direct Vehicle Engine Driven

Voltage DC (V)

12V/24V

Refrigerant

R134a

Refrigerant Charge

1.4Kg ~ 1.5Kg

Box Temperature Adjustment

Electronic digital display

Safety Protect

High and low pressure switch

Defrosting

Defrosting and heating optional

Compressor

Model

DY5H14

Displacement

138cc/r

Condenser

Coil

Aluminum micro-channel parallel flow coils

Fan

2 Axial Fan

Dimensions&Weight

880×865×210 mm & 23.8 kg

Evaporator

Coil

Aluminum foil with internal ridge copper tube

Fan

2Axial Fans

Dimensions&Weight

850×550×175 mm & 15.4 kg

Box Volume (m³)

0℃

15m³

Optional Function

Heating, Electric standby system AC 220V/380V, CPR Valve
