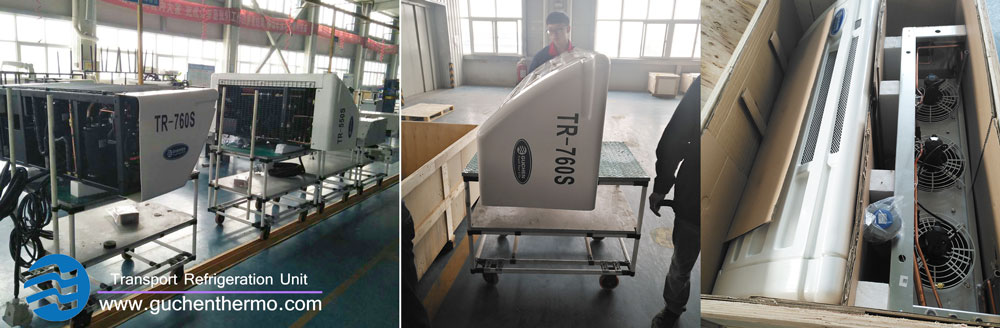

TR-450S, TR-550S, TR-760S

Models :TR-450S, TR-550S, TR-760S

Power:4735W,5800W,6700W

Control Voltage :DC 12V/24V

Refrigerant :R404a

Application:18m³ to 40m³

Installation:Front mounted

Introduction:


Guchen Thermo TR-450S, TR-550S and TR-760S is integrated electrical standby truck refrigeration units. This split truck refrigeration direct drive integrate the truck refrigeration with electric standby system, so it has the features of easy to install. If you want to find energy saving truck refrigeration unit manufacturers, Guchen Thermo TR-450S, TR-550S and TR-760S is better choice. Large cooling capacity, fast cooling speed, electric standby system, reliable working performance!



Features:


1.Very easy to install, less wires connect;
2.Small in size, light in weight, beautiful appearance;
3.Low failure rate, working reliable
4.Low noise,low powered consumption
5.Long service life, easy to maintain
6.Suitable for all kinds of road conditions

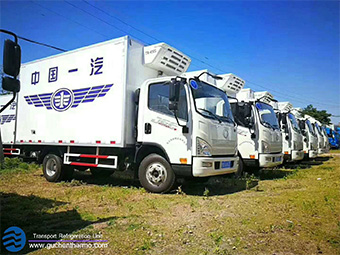

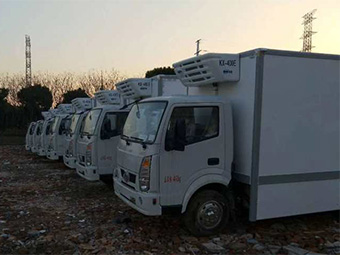

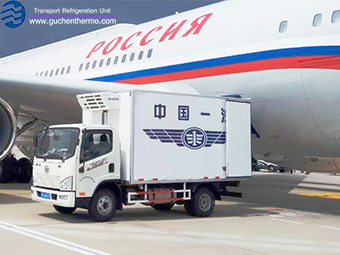

Application:




Technical Data:

Models

TR-450S

TR-550S

TR-760S

Cooling Capacity

Road/Standby

Temperature

Watt

Btu

Watt

Btu

Watt

Btu

On the Road

0℃

4735

16150

5800

19790

6700

22860

-20℃

2420

8260

3000

10240

3530

12040

Electric Standby

0℃

3915

13360

5220

17810

6120

20880

-20℃

2020

6890

2350

8020

3050

10410

Airflow Volume

1830m³/h

2200m³/h

3350m³/h

Temp. range

-30℃~+30℃

-30℃~+30℃

-30℃~+30℃

Refrigerant and volume

R404A,1.8kg±10%

R404A,2.8 kg

R404A,4.0kg

Defrost

Automatic/Manual hot gas defrost

Control Voltage

DC 12V/24V

DC 12V/24V

DC 12V/24V

Compressor Model and Displacement

Road

QP16/163cc

QP16/163cc

QP21/210cc

Electrical standby

KX-48L/48cc

KX-303L/68cc

KX-373L/83cc

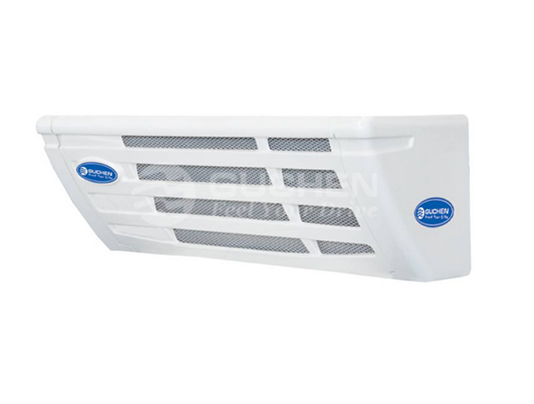

Condenser(with electrical standby)

Dimension

1270*588*415

1224*508*278mm

1224*555*278mm

Weight

98kg

115kg

122kg

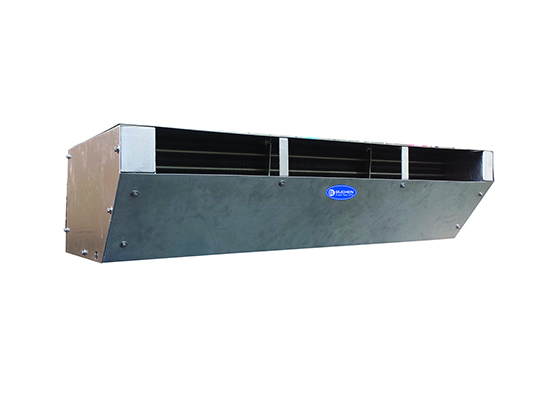

Evaporator

Dimension

1080*619*200mm

1456*640*505mm

1456*640*505mm

Weight

23kg

32kg

37kg

Electric Standby Power

AC 380V±10%,50Hz,3Phase;or AC 220V±10%,50Hz,1Phase

Recommend Box Volume

18~25m³

25~30m³

35~45m³

Optional

Heating, Remote control functions


Notes:
1.Ambient temperature: +30℃(100℉) for cooling, 0℃(32℉) for heating; K-value: ≤0.32Watts/m³℃. Recommend box volume in application is related to ambient, refrigerated body K-value and cargoes that will be loaded, etc.
2. Specifications are subject to change without priority notice; Guchen Thermo, 2017

PS:
We notice that the electric system in America is 60 hertz not 50 hertz. All Guchen refrigeration units are capable of running on standby power 220 volts 1phaze 60 hertz.
