C-300TS Large Chiller Van Road & Standby

Model:C-300TS

Features:Road & Standby

Temperature Range:-5℃ ~ +30℃

Standby cooling capacity (0℃):2850W

Standby cooling capacity (-5℃):1590W

Supplier:Guchen Thermo

Introduction Features Installation Technical Data

Introduction:

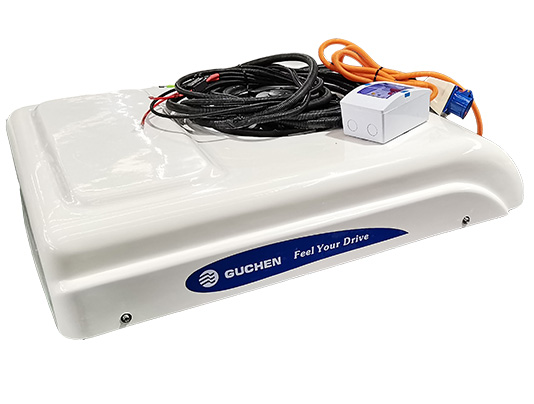

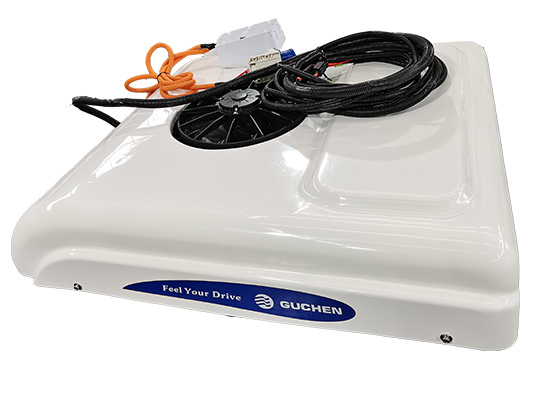

Guchen Thermo C-300TS electric standby van chiller unit is with compact and integrated structure. It consists of a slim evaporator, a sturdy condenser unit and a digital control panel.

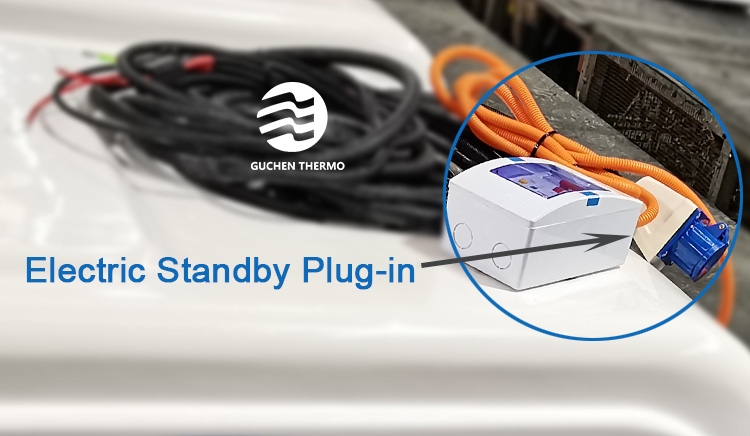

Its electric stand-by compressor is installed inside the condenser, which enable the chiller unit be plugged into external AC power supply while the van’s diesel engine stops.

Our van refrigeration units use durable materials and premium quality components. C-300TS standby gives our clients more options when it comes to transport fresh cargoes. It is a perfect choice for those transporters who:

◆ are looking for a high performance electric standby system for chiller van?

◆ want to connect the van unit to AC 220 volt plug while parked, to save fuel?

◆ are finding a feasible standby solution to convert an ordinary van to fridge one?

Why to Select Guchen Thermo C-300TS Electric Standby?

1. Road & Standby, Multiple Usage

C-300TS is now available in both vehicle-powered and electrical standby options. The integrated electric standby refrigeration system is actually an integral combination of direct drive chiller unit and electric standby.

When driving on the road, C-300TS van chiller unit is powered by the vehicle’s diesel engine, with powerful refrigerating; When parked for rest, loading or unloading, leaving your fridge van on standby and keeping electric standby unit plugged into AC 220 volt, giving seamless operation. This is how the combination of a road compressor and an electric stand-by compressor makes your perishable cargo (food, beverages etc.) cool on cross state trips.

2.Reducing Operating Expenses in both Energy Costs and Maintenance Costs

Once the engine idling time reduces, diesel fuel efficiency will be improved, helping you save more money. The engine maintenance costs will be minimized too. In a word, Guchen Thermo C-300TS integrated standby van chiller unit will greatly lower your overall operating costs.

3.Mature Offing, Mature Standby Technology

Guchen Thermo electric standby units have been put into practice for more than 10 years. The component reliability and system efficiency have went through the market test. The maturity of electric standby technology makes C-300TS standby units with low failure rate.

These units are built to last. You can rest assured that you will get an efficient and affordable electric standby solution at Guchen Thermo.

Features:

Chill Down to -5℃, Safely Meet Their Shelf Life

C-300TS is a chill only model, easy to operate with hot gas defrost. It provides precise temperature control, offering a range from -5℃ to 30℃.

C-300TS cargo van electric standby unit is perfect for delivering chilled goods, such as desserts, pizzas, fruit, vegetables, sandwiches and cakes etc.

Electric standby cooling capacity (Watts/hr): 0 ℃: 2850

Electric standby cooling capacity (Watts/hr): -5℃: 1590

C-300TS Integrated Standby Standard Feature

◆ R404a refrigerant

◆ Operation on 12/24V DC vehicles

◆ AC electric standby compressor with quiet operation, hermetically sealed low maintenance.

◆ In-cab digital controller with e-diagnostics

◆ Ultra-slim twin fan evaporator with large air flow, lightweight

◆ Automatic and manual hot gas defrost, fast & efficient, keeping the evaporator coils free of frost.

Options: Hot gas heating

Installation:

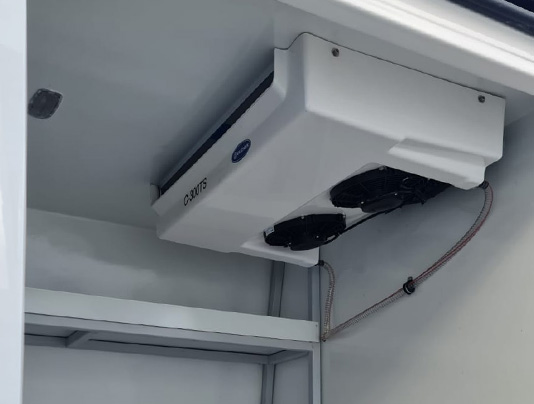

C-300TS chiller van electric standby unit

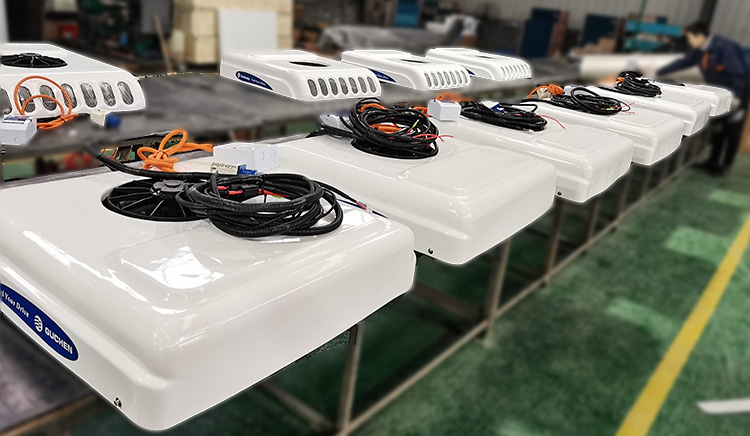

quality C-300TS Electric Standby Van Unit

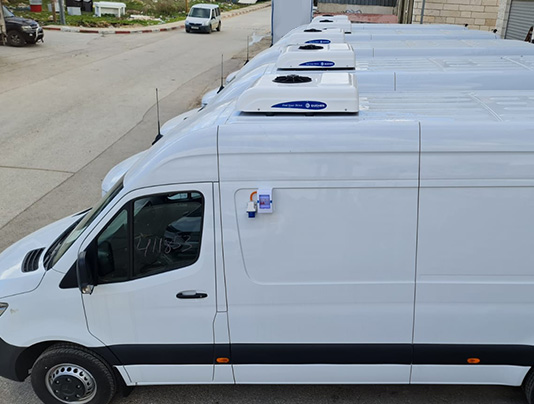

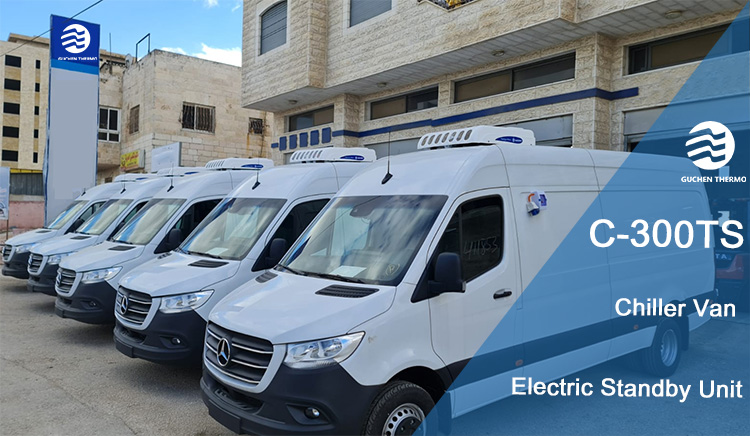

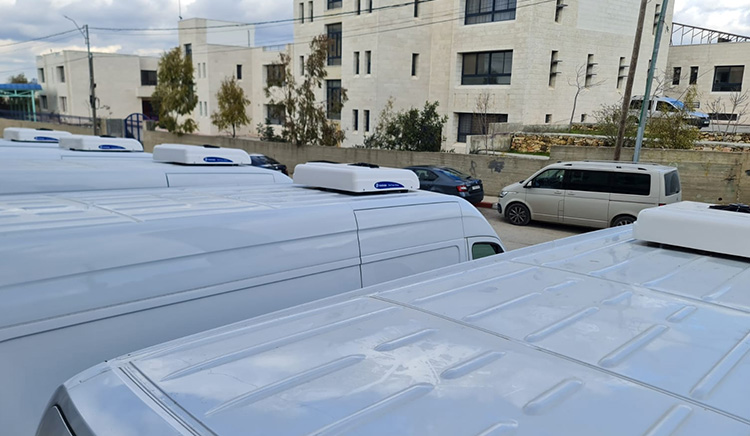

Installation Cases of Guchen Thermo C-300TS Integrated Electric Standby Systems for Chiller Van

Technical Data:

Model			C-300TS
Cooling Capacity	Conditions	Temperature	Watts
	Road	0℃	3070W
	Road	-5℃	1720W
	Standby	0℃	2850W
	Standby	-5℃	1590W
Control Voltage			DC 12V/24V
Defrosting			Hot gas defrost(Auto./Manual)
Temperature Range			-5℃ ~ +30℃
Refrigerant & Volume			R134A,1.3kg±10%
Airflow Volume			1500m³/h
Compressor		Road	GY5S14/138cc
Compressor		Standby	DDH356LV
Condenser(With standby)		Type	Parallel Flow Condenser
		Qty of Fans	1Pcs
		Dimensions	1000x850x234mm
		Weight	63Kg
Evaporator		Type	Inner Grooved Copper Tube and Aluminum Foil Fin
		Qty of Fans	2Pcs
		Dimensions	856x550x175mm
		Weight	17Kg
Electric Standby Power Supply			AC220V 1Phase 50HZ
Recommended Box Volume			12~16m³

PS:
We notice that the electric system in America is 60 hertz not 50 hertz. All Guchen refrigeration units are capable of running on standby power 220 volts 1phaze 60 hertz.
