TR-650 Truck Reefer Unit (35-45 m³ Truck Box)

Driven Type:Vehicle Engine Driven

Installation:Front Mounted

Compressor:QP16/163cc

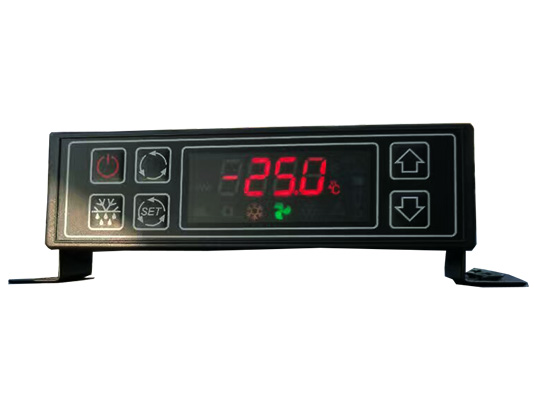

Controller:Digital, In Cab

Application:35-45 m³

Refrigerant:R404a

Introduction:

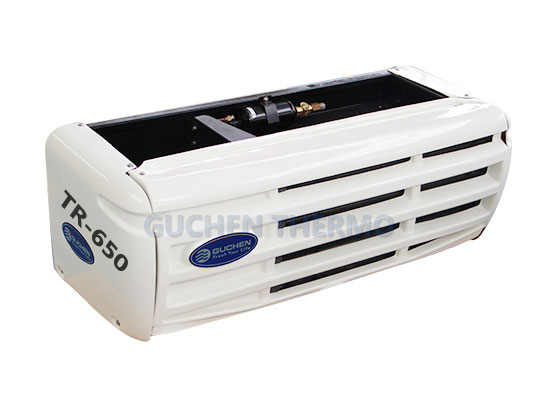

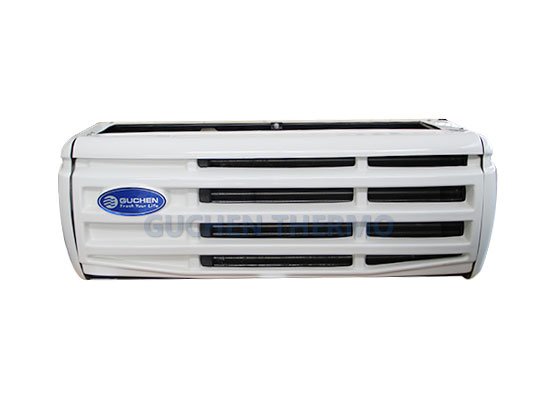

Description of Guchen Thermo TR-650 Vehicle Refrigeration Units

Guchen Thermo TR-650 vehicle refrigeration units are direct engine driven units, apply for 35~45m³ big sized refrigerated truck bodies. With R404a refrigerant can support the 5800W big cooling capacity. The temperature range is -25℃ ~ +30℃, so it is very suitable for delivering fresh or deep frozen cargoes.

Because of its big cooling capacity and applying for the big trucks, so the car refrigeration units are recommend that equipped with standbys system for those transporters, who need to continue refrigerating cargoes at night when truck engine is off. It is very convenient and fuel-saving for customers to equip with standby system. Of course, customers can also choose the diesel engine driven refrigeration truck units for a better choice.

Features:


Guchen Thermo TR-650 Vehicle Refrigeration System Unique Features


◆ H/P, L/P protection of cooling system
◆ Liquid injection and oil return protection device
◆ Add CPR valve to protect compressors, especially suitable for the hot place.
◆ High/low voltage protection of cooling system
◆ Thermal protection device
◆ Data set parameters and alarm.
◆ Big cooling capacity 5800W
◆ Digital display in temperature shows two types: ℃ or ℉

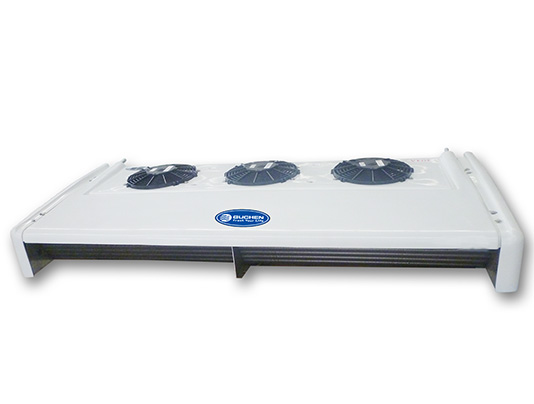

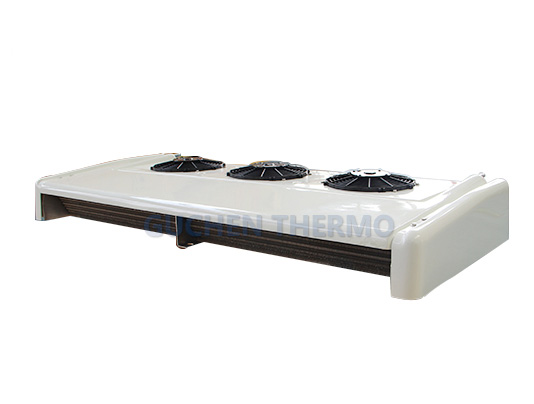

◆ Extra-flat evaporator with internally threaded cooper tube and micro-channel parallel flow condenser increased heat dissipation rate by 30%.
◆ Low engine and compressor RPM operation for reduce the fuel cost and running very quietly

Application:

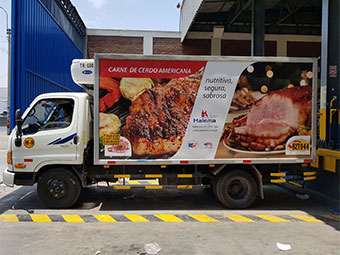

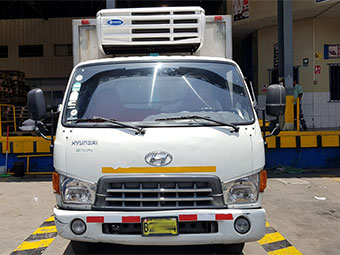

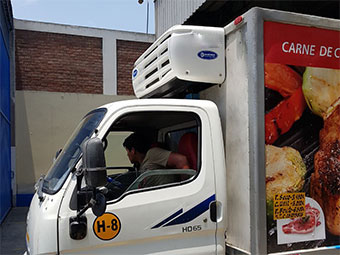

These are some of photos about Guchen Thermo refrigeration units for vehicles installation. In the first photo is Guchen Thermo TR-650 Vehicle Refrigeration Units, second photo is Guchen Thermo TR-650 Vehicle Refrigeration System  and third photo is Guchen Thermo TR-650 Car Refrigeration Units

Technical Data:


Model TR-650
Temperature Range(In Container)

-25℃ ~ +30℃ / 0℉ ~ +86℉

Cooling Capacity 0℃/+32℉ 6050W / 6745Kcal/h / 18000BTU

   -18℃/ 0℉

3300 / 3489Kcal/h / 9980BTU
Compressor Model QP16
Displacement 163cc/r
Weight

8.9KG

Condenser Coil

             Copper Tube & Aluminum Fin

Fan

 Two Fans (DC12V/24V)

Dimensions

              1367*514*498 mm

Weight 78 kg
Evaporator Coil

             Copper Tube & Aluminum Fin

Fan

 Three Italy Spal Fans(DC12V/24V)

Dimensions 1530×649×230 mm
Weight 38 kg
Voltage DC12V / DC24V
Refrigerant R404a/3.6kg
Defrosting Hot gas defrosting(Auto./Manual)
Application 35~45m³
Optional Functions Electric standby system AC 220V/380V, Heating system
