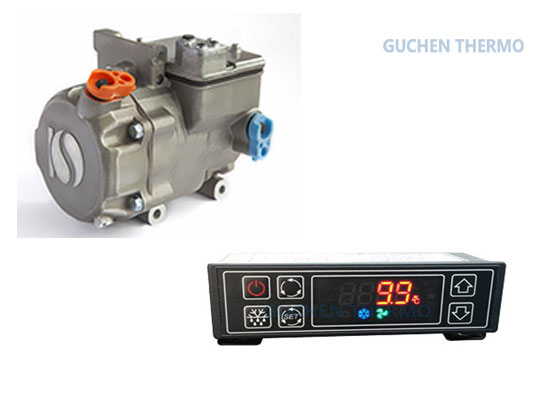

  • Guchen Thermo chiller units for vans digital panel and compressor
  • electric van refrigeration units on the cargo vans
  • TR-110D electric van refrigeration kits
TR-110D Electric Van Refrigeration Unit

Driven Type:Battery driven unit

Installation:Split Roof-top mounted

Compressor:Electric scroll compressor

Controller:Digital, In Cab

Application:2~8m³

Refrigerant : R134a

Introduction:



Guchen Thermo TR-110D Small Van Refrigeration Units Description


The small van refrigeration units with Eco-friendly R134a refrigerant can be used for 2~8m³ refrigerated vans to keep its temperature at -5℃~+25℃. The evaporator of TR-110D adopts aluminum foil with internal ridge copper tube, water drops not collecting together to freeze, increase the heat exchange rate by 30%, and improve the refrigerating effect.

Guchen Thermo TR-110D Small van refrigeration Units

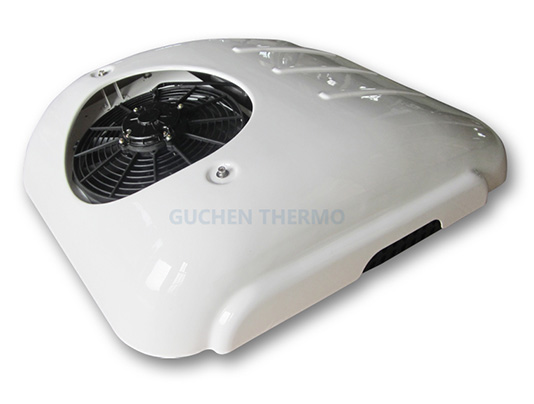

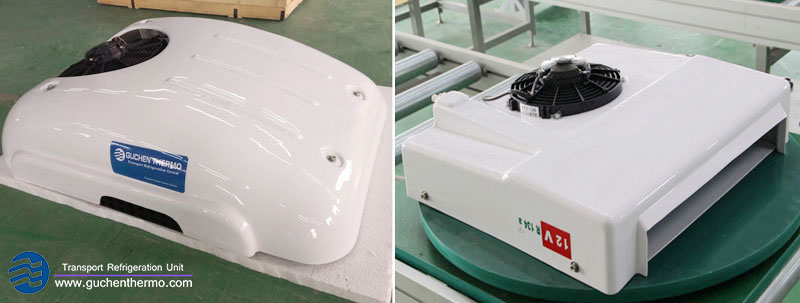

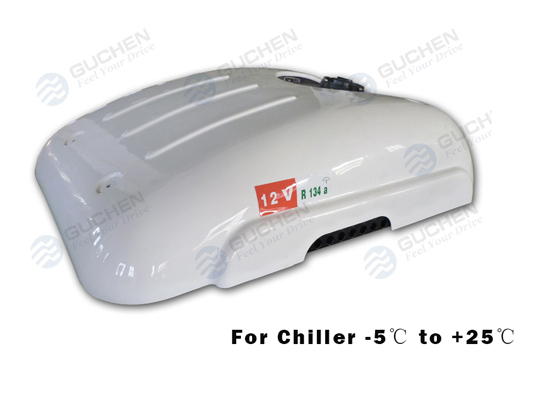

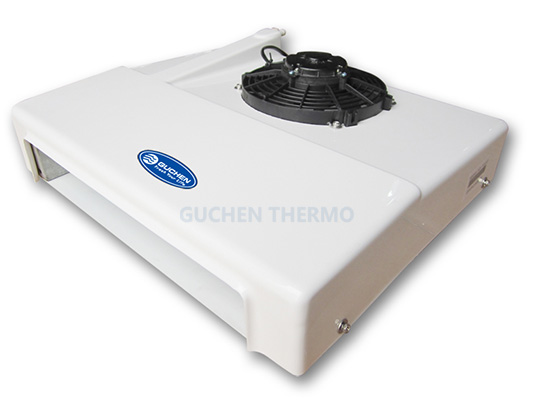

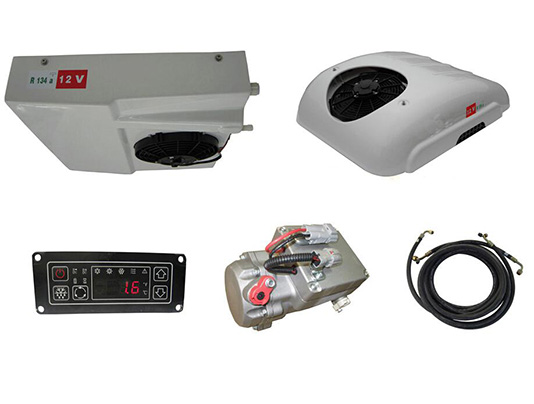

PHOTO: Guchen Thermo TR-110D van refrigeration Kits (Condenser and Evaporator)

TR-110D reefer units for cargo vans are very suitable for the small cargo vans, because some small cargo vans have no enough space to install compressor, but TR-110D's compressor is in the inner side of condenser, it is very small, light, save space and easy to install. So if you have a small cargo vans, we recommend TR-110D model.

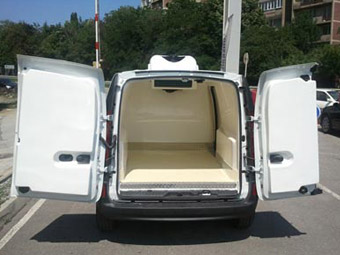

Guchen Thermo TR-110D van refrigeration kits install on the small cargo vans
PHOTO: Guchen Thermo TR-110D van refrigeration kits install on the small cargo vans


Features:


Guchen Thermo TR-110D Small Van Refrigeration Units Unique Features


◆ Driven by DC powered vehicle battery,save much fuel.
◆ Add CPR valve to protect compressors, suitable for the hot place.
◆ Realize that vehicle engine is off but cooling system is continuous.
◆ Adopt Eco-friendly refrigerant: R134a
◆ Hot gas defrosting system: Auto and manual for choices
◆ Worldwide famous key parts: Sanden compressor, Danfoss Valve, Good Year, Spal fans; Codan, etc.
◆ Compressor is in the inner side of condenser, helps save installation space and easy to install.
◆ International certification past: SO9001/TS16949CE/QS9001/CE etc

Application:

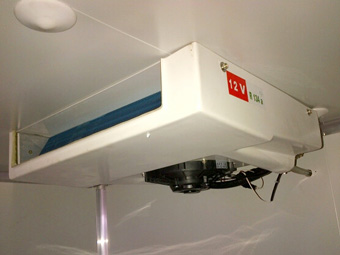

guchen thermo electric van refrigeration units  12 volt refrigeration units for vans evaporators in cargo vans  guchen thermo 12 volt refrigeration units for vans

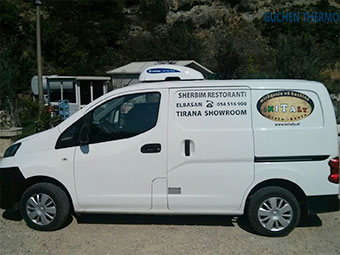

Here is Guchen TR-110D reefer units for cargo vans mount on 5 m³ small van box project in Eastern Europe. The customers need 4℃ unit temp to keep foods chilled. According to customers’ feedback, these chiller units for cargo vans are very easy to mount, because he doesn’t need to install compressor on the other side of cargo vans.

------Guchen Thermo TR-110D Small Van Refrigeration Units Mount on Vans Project

Technical Data:


Model TR-110D
Temperature Range In Container -5℃ ~ +25℃ / 23℉ ~ +77℉
Cooling Capacity 0℃ +32℉ 1100W / 952Kcal/h / 3750 BTU
Compressor Model YM15
Displacement 15cc/r
Condenser Coil Aluminum micro-channel parallel flow coils
Fan 1 Axial Fan
Dimensions & Weight 865×660×210 mm& 40 kg
Evaporator Coil Aluminum foil with internal ridge copper tube
Fan 1 Axial Fans
Dimensions & Weight 510×600×138 mm&18 kg
Defrosting No
Application 0~5℃ 8 m³
-5℃~0℃ 2~5 m³
Optional Function Electric standby, Heating
