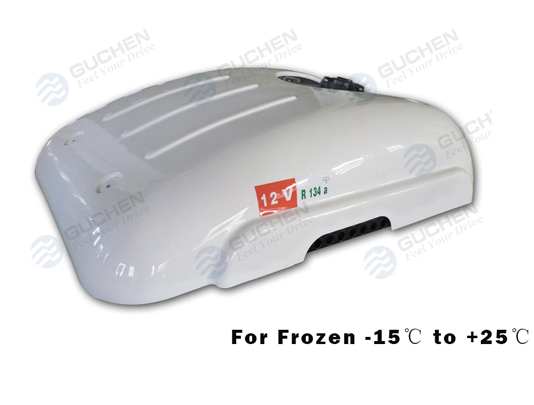

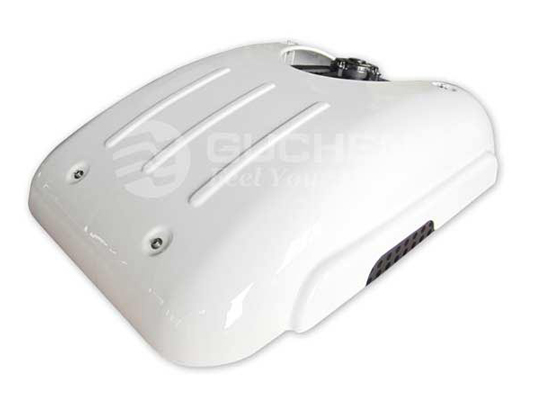

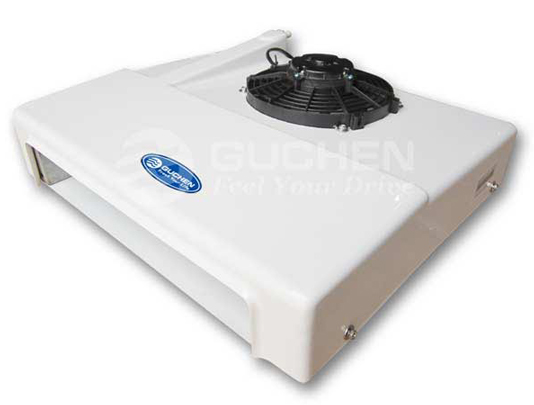

TRF-110D Electric Van Freezer Unit

Driven Type:Battery driven unit

Installation:Split Roof-top mounted

Compressor:Electric scroll compressor

Controller:Digital, In Cab

Application:2~8m³ Van Box

Refrigerant :R134a

Introduction:


Guchen Thermo TRF-110D full electric van refrigeration unit, and is also condenser roof mounted van frozen unit, battery powered driven for fresh or frozen foods transportation, this battery powered van refrigeration unit is easy to install and help you save fuel a lot, reduce cost. TRF-110D is suitable for 2~5m³cargo van body at temperature of -15℃~+25℃ to use and designed specially for Sprinter,Ford, Fiat,Renault,VW,EVECO...Vans.

How Could You Run TR-110DF Full Electric Van Refrigeration Units when Van Stops?


Once the van engine is off, the frozen unit for cargo van will won't last long for refrigerating. So please equip the small van freezer unit with an extra Transformer(AC Power Switch), which can transform the AC main power to DC12V/DC24V; besides, it can be plugged into the 240V/380V main power supply, and in the mean time charge the vehicle battery. So it’s very simple and convenient to run the van refrigeration units when the engine is off.

Features:


Guchen Thermo TRF-110D Small Electric Van Freezer Units Unique Features


◆ Driven by DC powered vehicle battery,save much fuel.
◆ Add CPR valve to protect compressors, suitable for the hot place.
◆ Realize that vehicle engine is off but cooling system is continuous.
◆ Adopt Eco-friendly refrigerant: R134a
◆ Hot gas defrosting system: Auto and manual for choices
◆ Worldwide famous key parts: Sanden compressor, Danfoss Valve, Good Year, Spal fans; Codan, etc.
◆ Compressor is in the inner side of condenser, helps save installation space and easy to install.
◆ International certification past: SO9001/TS16949CE/QS9001/CE etc

Application:


small electric van freezer units for sale guchen thermo small electric van freezer units for sale guchen thermo small electric van freezer units for sale guchen thermo

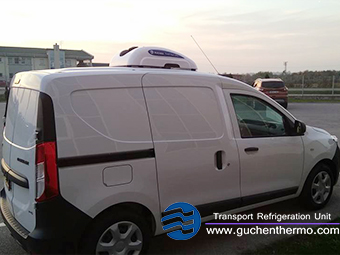

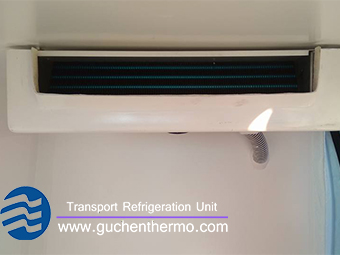

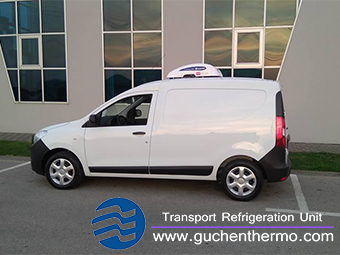

Guchen Thermo TRF-110D van freezer unit for sale installation on the small cargo vans, customer who want to buy the battery powered van refrigeration units can contact us or ask us whether we have a dealer in your local areas.

Technical Data:

Model

TRF-110D

Temperature Range(In Container)

-5℃ ~ +25℃ / +23℉ ~ +77℉

Cooling Capacity

-15℃/5℉

700W / 600Kcal/h /2390 BTU

Compressor

Model

YM15



Displacement

15cc/r



Weight

NO

Condenser

Coil

Hydrophilic aluminum foil with internal ridge copper tube



Dimensions

865*660*210 mm



Weight

40 kg

Evaporator

Coil

Aluminum foil with internal ridge copper tube



Dimensions

510*600*210 mm



Weight

18 kg

Voltage&Total current

DC12V(55A) DC24V(35A)

Refrigerant

R134a/1.2 kg

Defrosting

NO

Total Weight

63 kg

Application

Sprinter Ford,Fiat,Renault,VW,IVECO etc
