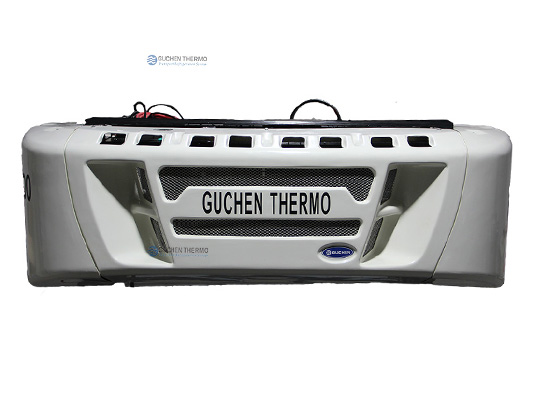

• Guchen thermo Super Snow transport refrigeration units
  • Guchen thermo Super Snow transport refrigeration units evaporator

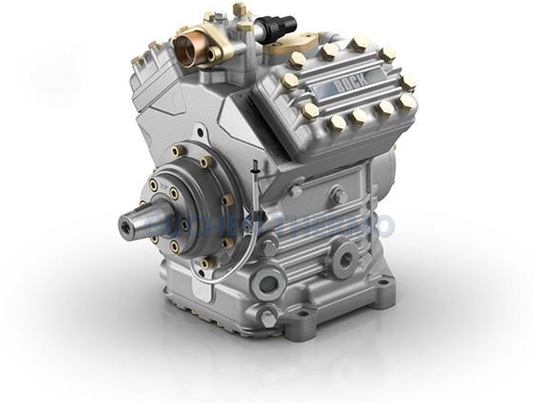

  • Guchen thermo Super Snow transport refrigeration units compressor

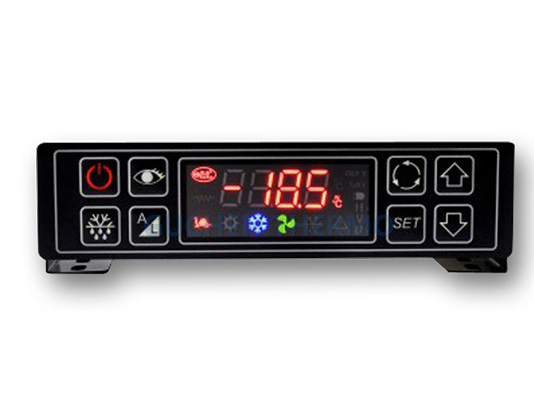

  • Guchen thermo Super Snow transport refrigeration units digital panel
Diesel Engine Truck Refrigeration Unit

Model:TS-700,TS-1000,TS-1200

Power:4000w,5500W,9200W

AC power:AC220V/380Vtri-phase

Installation:Front Mounted

Application :25~65 m³ truck box

Refrigerant :R404a

Introduction:


Description of Guchen Thermo Super Snow Transport Refrigeration Units

Guchen Thermo Super Snow transport refrigeration units are diesel engine truck refrigeration units, it has independent cooling system not relying on truck engine for refrigerating, so it is also called as “independent transport refrigeration units”.

Super Snow transport refrigeration systems are usually used for the big truck bodies with 7.6 m - 9.6 m length or 35~65 m³refrigerated truck bodies. With R404a refrigerant, the temperature range is -20℃ to +30 ℃ for transporting fresh or deep frozen cargoes.

diesel engine truck refrigeration units

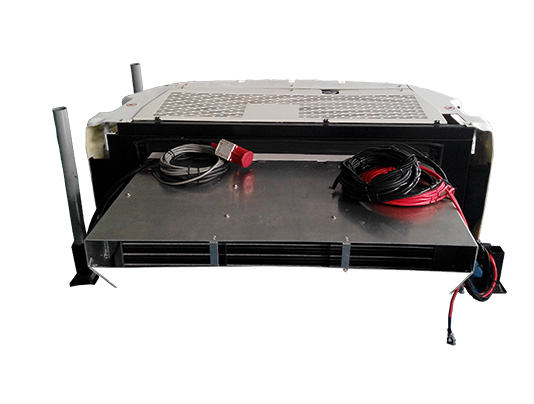

PHOTO: Guchen Thermo Diesel Engine Truck Refrigeration Units Evaporator and Condenser

Because of its independent performance, it is very suitable for the long-distance transportation. That is to say, when transporters on the half way, they don’t need to worry about that truck may come to an anchor. Even if this happened on half way, the cooling system will never get affected. The super snow transport refrigeration units really help customers realize that “vehicle engine is off, cooling system never stops!”

Features:


Guchen Thermo Super Snow Transport Refrigeration System Unique Features



◆ Independent cooling system, not relying on vehicle engine, especially designed for the long-distance transportation safely.
◆ Suitable for big trucks to transport fresh or deep frozen cargoes.
◆ Fuel safer diesel engine, low noise, low emission, and low vibration level - German Bock FKX40/390TK compressor.
◆ Quick installation and low cost maintenance.
◆ High cooling capacity on engine or standby system.
◆ Super snow transport refrigeration units especially designed for big trucks with 7.6 m - 9.6 m length box and box volume is 25~65 m³.
◆ Modular design control system and logger date function.
◆ In-cab remote display and control.

Application:


guchen themo diesel engine truck refrigeration units ts-1000 installation

This is a piece of photo about Guchen Thermo TS-1000 diesel engine truck refrigeration units installation in the Middle East areas. The super snow transport refrigeration units are very suitable for the long distance transporation, especially for the high temperature areas, adding CPR valve, it can help protect compressorss from borken, increase the units service life.



diesel engine truck refrigeration units guchen thermo ts-1000

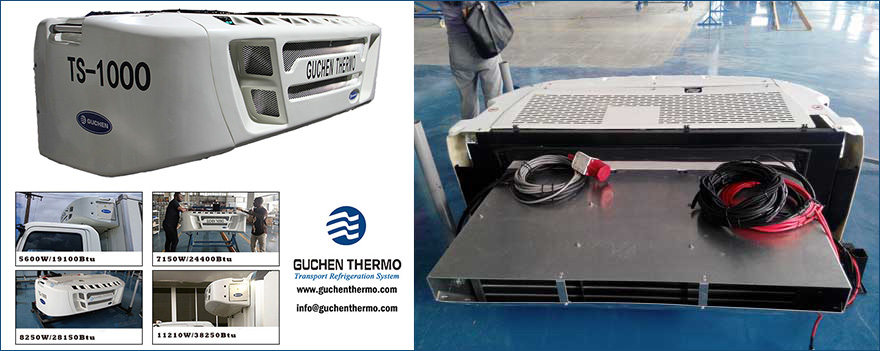

In the first photo is Guchen Thermo Super Snow Transport Refrigeration Units on the truck transport company project, in the second photo is Guchen Thermo  Super Snow Transport Refrigeration Units for Sale and in the third photo is Guchen Thermo Super Snow Transport Refrigeration Systems on the Mitsubishi trucks.

Technical Data:


Models of Guchen Thermo Super Snow Diesel Engine Truck Refrigeration Unit

Drive Model

Diesel Engine Driven  (MONO-BLOCK UNIT)

Model TS-600 TS-800 TS-1000 TS-1200

TEMP. RANGE

-25℃~+30℃

-25℃~+30℃

-25℃~+30℃

-25℃~+30℃

BOX APPLICATION

25~35m³

30~45m³

45~55m³

55~65m³

GENERATOR

12V; 75A

12V; 75A

12V; 75A

12V; 75A



Engine





ORIGINAL

Japan

Japan

Japan

Japan

BRAND

Perkins

Perkins

Perkins

Perkins

FUEL TYPE

Diesel

Diesel

Diesel

Diesel

NO. OF CYLINDER

2

3

3

3

TEMP. CONTROL

Digital Controller in Cab

DEFROST

Hot Gas Defrost

Comprossor

ORIGINAL

Germany

Germany

Germany

Germany

BRAND

Bock

Bock

Bock

Bock

MODEL

FKX30 235TK

FKX30 235TK

FKX40 390TK

FKX40 560TK

DISPLACEMNT

233cc

233cc

385cc

560cc

REFRIGERANT

R404a

R404a

R404a

R404a

CHARGE VOL.

4Kg

4.5Kg

6.6Kg

6.8Kg

HEATING

Hot Gas Heating; Standard

ELECTRIC STANDBY

AC220V/3Phase/50Hz; AC380V/3Phase/50Hz; Standard



OVERALL SIZE

1795*795*560

1825*860*630

1825*860*630

1915*970*690



BODY  OPENING

1245*310

1245*310

1245*350

1245*350

WEIGHT

395Kg

432Kg

475Kg

634Kg
