Electric Control System

Application:Transport Refrigeration Units

Voltage:DC12V/24V (0 ~ DC50V)

Controller size :127*37*43mm(flexible)

Mount type:Flat mounting with bracket

Wire Length:4.7m(1-1); 7.5m(2-2); 8.5m(3-3)

Ingress Protect: IP65(Relay); IP67(Wires)

Introduction:


Description of Electric Control System

As the core of transport refrigeration units, Guchen Thermo electric control system for refrigeration unit is R&D from 2010, and approved by ISO9001 in 2012. With more than 10 years’ development, and we keep on improving and updating the hardware and software, our electric control systems has grown into mature and reliability.

Currently, we have a full range of electric control systems that can well meet the temperature control demands of all types of transport refrigeration units; and our products has been widely taken by main manufactures of truck refrigeration units in China. In 2015, we support over 8000 sets electric control systems for China refrigeration industry; and in 2016, our sales volume surging up to 12000 sets. We are striving to make our products serve each truck refrigeration unit in China!!!

Our electric control systems are designed per to the complicated working conditions of transport refrigeration, which is easy for operation, with advanced control technology, high detection accuracy and rich setting programs.

The electric control system include in:

▲ Controller
▲ Relay Box

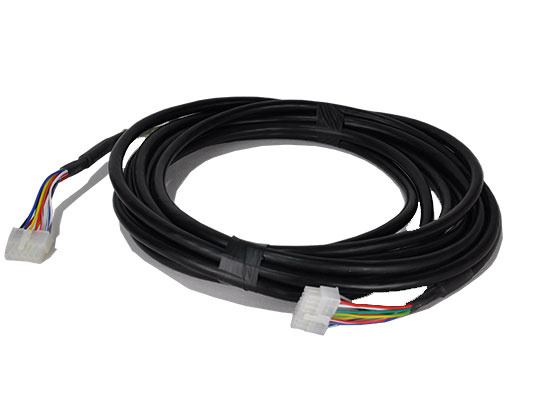

▲ Wires

According to different demands, customers can choose the right match electric control system for your transport refrigeration units. It can apply on all types of transport refrigeration units, such as chiller units, freezer units, roof top mounted units and split units.


Models of Electric Control System


▲ Controller Models


refrigeration units electric control system guchen thermo

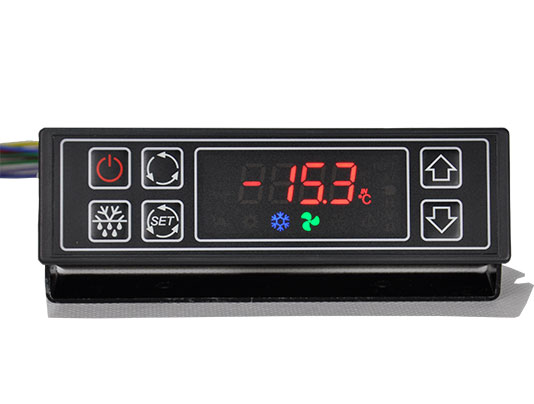

For Split Type Transport Refrigeration Units
Models: LDRP1141
Rated Voltage: DC12V/DC24V
Voltage Max. Available Range : DC16V-DC32V/DC8V-DC16V
Controller Size:127*37*43mm(flexible)
Temp. Display Range: -40℃- 85℃




refrigeration units electric control system guchen thermo
For Standby System Transport Refrigeration Units
Models: LDRP1158
Rated Voltage: DC12V/DC24V
Voltage Max. Available Range : DC16V-DC32V/DC8V-DC16V
Controller Size:127*37*58mm(flexible)
Temp. Display Range: -40℃- 85℃




refrigeration units electric control system guchen thermo

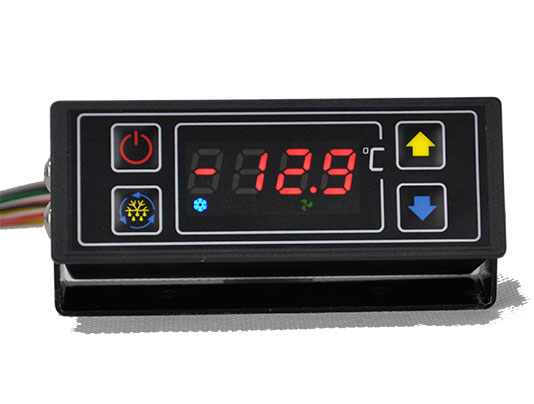

For Transport Chiller Units
Models: LDRP1181
Rated Voltage: DC12V/DC24V
Voltage Max. Available Range : DC16V-DC32V/DC8V-DC16V
Controller Size:102*37*43mm(flexible)
Temp. Display Range: -40℃- 85℃




refrigeration units electric control system guchen thermo
For Split Transport Refrigeration Units Touch Panel Type
Models: DP520
Rated Voltage: DC12V/DC24V
Voltage Max. Available Range : DC16V-DC32V/DC8V-DC16V
Controller Size:120*32*43mm(flexible)
Temp. Display Range: -40℃- 85℃




refrigeration units electric control system guchen thermo
For Big Split Transport Refrigeration Units
Models: KXRP1100B
Rated Voltage: DC12V/DC24V
Voltage Max. Available Range : DC16V-DC32V/DC8V-DC16V
Controller Size:140*50*110mm(flexible)
Temp. Display Range: -40℃- 85℃




refrigeration units electric control system guchen thermo
For Dual Temperature Control Transport Refrigeration Units
Models: KXRP1176
Rated Voltage: DC12V/DC24V

Voltage Max. Available Range : DC16V-DC32V/DC8V-DC16V
Controller Size:127*37*58mm(flexible)
Temp. Display Range: -40℃- 85℃

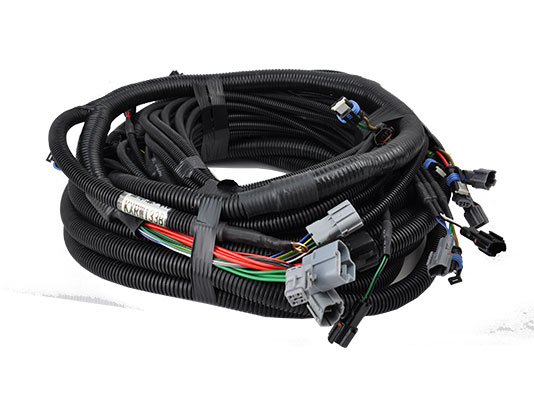

▲ Relay Box and wires

refrigeration units electric control system guchen thermo

Relay Box Model: DA410
Matched Wires: 1 condenser fan and 1 evaporator fan
Ingress Protect: IP65(Relay); IP67(Wires)




refrigeration units electric control system guchen thermo

Relay Box Model: DA611
Matched Wires: 2 condenser fan and 2 evaporator fan
Ingress Protect: IP65(Relay); IP67(Wires)



refrigeration units electric control system guchen thermo

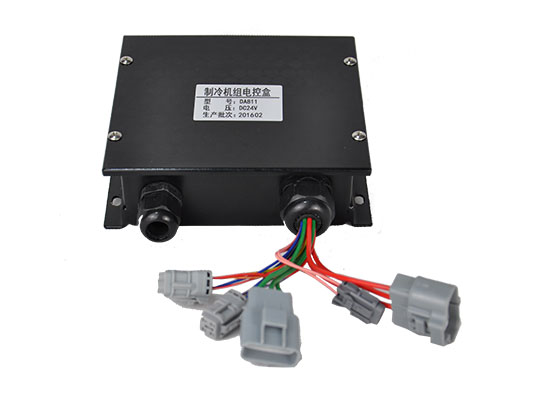

Relay Box Model: DA811
Matched Wires: 2 condenser fan and 2 evaporator fan
Ingress Protect: IP65(Relay); IP67(Wires)



refrigeration units electric control system guchen thermo


Relay Box Model: DA812
Matched Wires: 2 condenser fan and 2 evaporator fan
Ingress Protect: IP65(Relay); IP67(Wires)

Features:

▲ Advanced configurations:The electric components are from world famous suppliers and remote control module;


▲ Multi-function: Heating and cooling, manual and auto. Defrost, automatically data-saving when power off, with quick reset to defaults, with box temperature difference compensation, compressor protection, voltage detection, and fuse detection function...

▲ Reliable: In 2016, we support over 8000 sets electric control systems for China refrigeration industry.

▲ Full waterproofing: Greatly avoid of units failures caused by rains and human factors

▲ Various application: Widely used for single, dual or 3 temperature-zone control; for fresh keeping or frozen keep; for split units or diesel units; for refrigeration units with or without electric standby; and for vehicles with CAN Bus interface.

▲ Low maintain cost: Complete trouble detection system; easy for trouble-shooting and maintenance.

▲ Broad working voltage: High resistance capacity for power supply surge with 0~50V working voltage

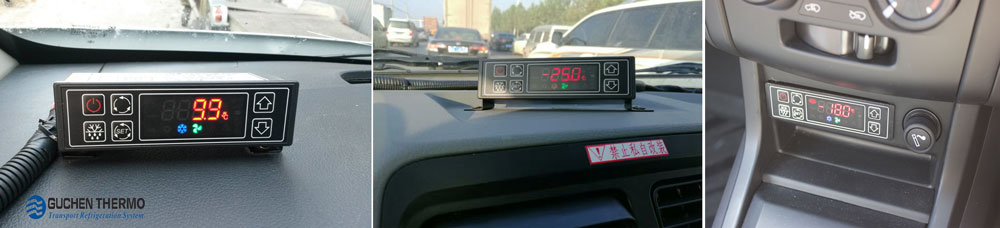

Application:



Application of refrigeration units electric control system

Guaranteen :


1.Completely instruction manual (Please download PDF)
2.12 months warranty time.
3.Approved by ISO9001.
4.7*24H online help.
