TR-300 Truck Reefer Unit (10-20m³ Truck Box)

Driven Type:Vehicle Engine Driven

Installation:Front Mounted

Compressor:QP16/163cc

Controller:Digital, In Cab

Application:10~20 m³

Refrigerant:R404a

Introduction:


Description of Guchen Thermo TR-300 Truck Refrigeration Units


Guchen Thermo TR-300 transport refrigeration system is front mounted vehicle engine driven units, especially apply for 10~20m³(L≤4.3m) small or medium sized refrigerated truck box. With the R404a Eco-friendly refrigerant, can make inner temperature keep at -20℃ to 25℃. So TR-300 small refrigeration units for trucks are more suitable for transport frozen or deep frozen foods, such as ice cream.

Tips: Only need to transport fresh cargoes and don't have a high requirement to the temperature, please try
Guchen Thermo C-300 truck chiller units model!

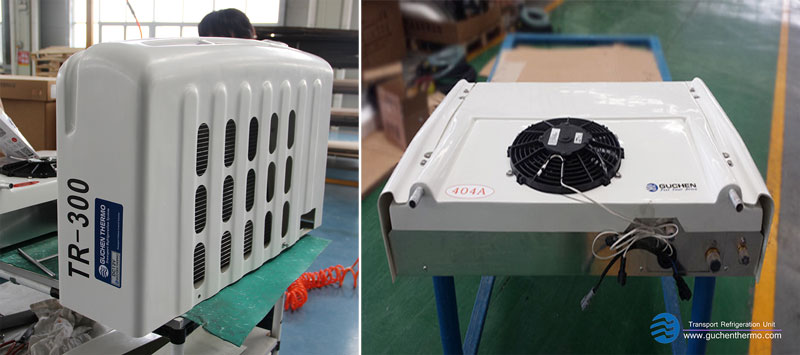

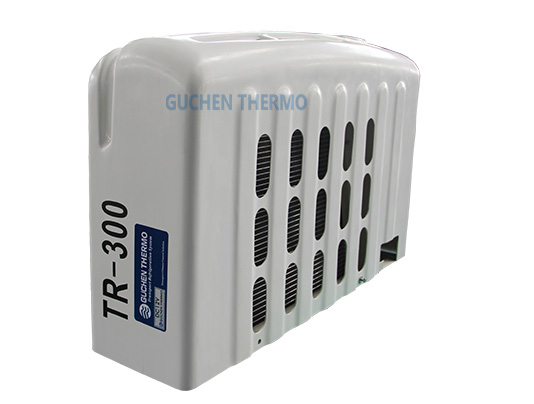

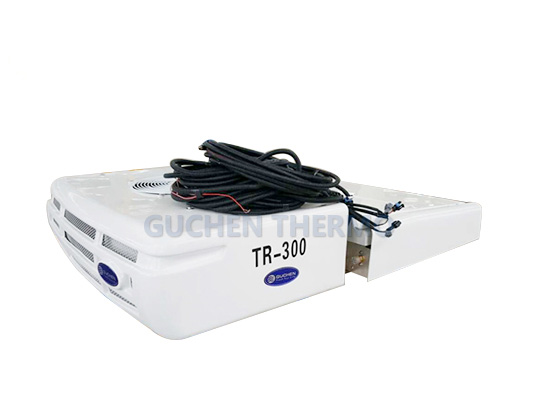

Guchen Thermo TR-300 Truck Freezer Units Condenser and Evaporator
PHOTO:  Guchen Thermo TR-300 Truck Refrigeration Units Condenser and Evaporator

Features:


Guchen Thermo TR-300 Truck Refrigeration Units Unique Features



◆ Add CPR valve to protect compressors, especially suitable for the hot place.
◆ H/P, L/P protection of cooling system
◆  Liquid injection and oil return protection device
◆  Thermal protection device

Application:



guchen thermo TR-300 truck refrigeration units   guchen thermo TR-300 truck refrigeration units   guchen thermo TR-300 truck refrigeration units

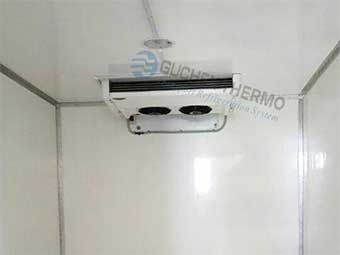

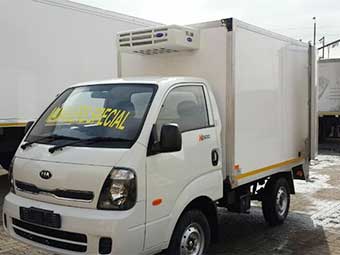

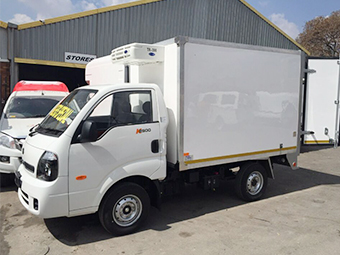

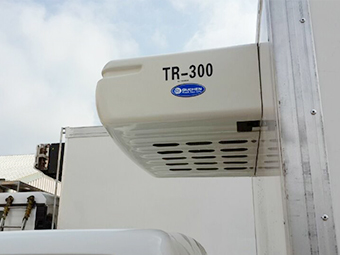

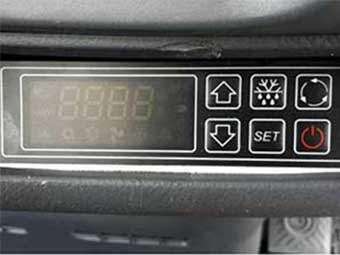

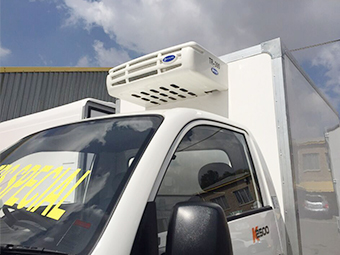

A  piece of photos about Guchen Thermo TR-300 truck reefer units for sale to foreign countries installation,  you can see the main parts about  the transport refrigeration system on truck , included in front mounted condenser, two fans evaporators and digital control panel.

Technical Data:


Model TR-300
Temperature Range(In Container)

-18℃ ~ +30℃ / 0℉ ~ +86℉

Cooling Capacity 0℃/+32℉ 3010W / 3500Kcal/h / 10270 BTU

   -18℃/ 0℉

1770W / 2059Kcal/h / 6040 BTU
Compressor Model QP16
Displacement 163cc/r
Weight



Condenser Coil

Aluminum micro-channel parallel flow coils

Fan Guchen
Dimensions 880×553×230 mm
Weight 19 kg
Evaporator Coil Aluminum foil with internal ridge copper tube
Fan Spal
Dimensions 845×646×230 mm
Weight 15 kg
Voltage DC12V / DC24V
Refrigerant R404a/1.3kg
Defrosting Hot gas defrosting(Auto./Manual)
Total Weight



Application 10~20 m³
Optional Functions  Electric standby system AC 220V/380V, Heating system
