TR-200 Truck Reefer Unit (6-15m³ Truck Box)

Driven Type:Vehicle Engine Driven

Installation:Front Mounted

Compressor:5H11/108cc

Controller:Digital, In Cab

Application:6~15m³

Refrigerant :R404a

Introduction:


Description of Guchen Thermo TR-200 Pickup Truck Refrigeration Units


Guchen Thermo as the best truck refrigeration units suppliers in China can meet customers’ all kinds of cold-chain transportation demands. Our TR-200 freezer units for pickup trucks are vehicle engine driven units, used for small truck bodies with 2-15m³ sizes, especially popular with the small truck users.

TR-200 small truck refrigeration units for sale Guchen Thermo

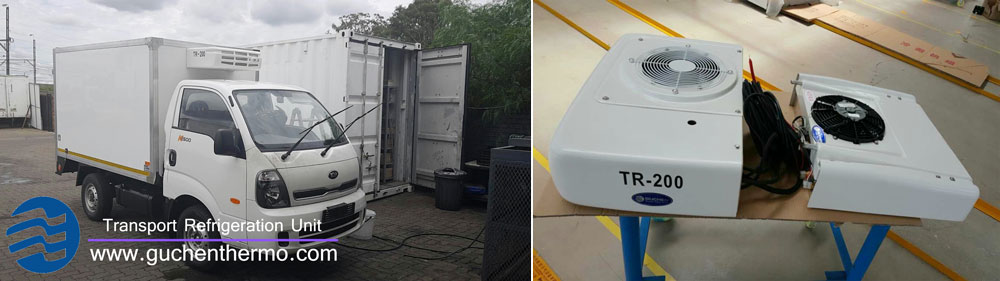

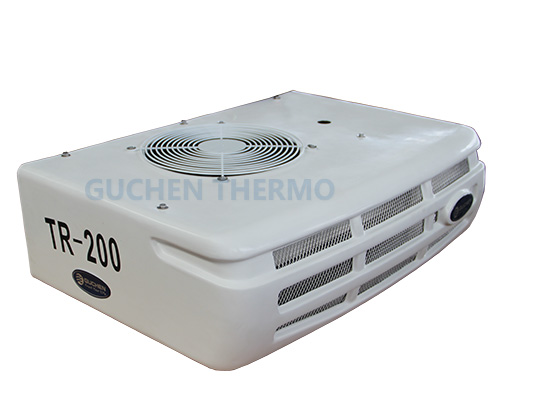

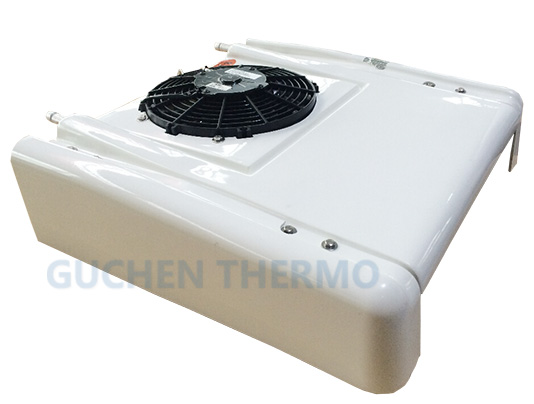

PHOTO: TR-200 small truck refrigeration units (evaporator and condenser)

With R404a refrigerant, TR-200 pickup truck freezer units have the big cooling capacity, which is up to 2.2KW to transport fresh or deep frozen products safely. So even in the high ambient temperature environment or open door constantly, the units can support the strong cooling effect.

Guchen Thermo TR-200 small truck refrigeration units
PHOTO:Guchen Thermo TR-200 small truck refrigeration units install on the small trucks

Tips: Only need to transport fresh cargoes and don't have a high requirement to the temperature, please try Guchen Thermo C-200 truck chiller units model!

Features:


Guchen Thermo TR-200 Pickup Truck Refrigeration Units Unite Features


◆ H/P, L/P protection of cooling system
◆ High/low voltage protection of cooling system
◆ Add CPR valve to protect compressors, especially suitable for the hot place.
◆ Liquid injection and oil return protection device
◆ Thermal protection device
◆ R404a refrigerant
◆ Especially designed for pickup trucks
◆ Super slim evaporators, save box space and increase cargo load
◆ Hot gas defrosting system

Application:


 Guchen Thermo pickup truck refrigeration units in Pickup Trucks   Guchen Thermo pickup truck refrigeration units in Pickup Trucks   Guchen Thermo pickup truck refrigeration units in Pickup Trucks Digital Panel

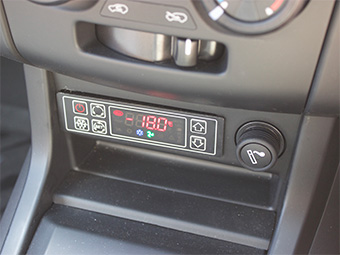

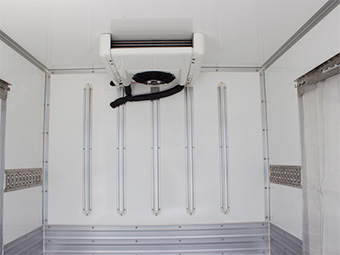

Here is a piece of photo about TR-200 pickup truck freezer installation. In the second photo, it is TR-200 freezer units for pickup trucks of evaporator, and third photo is controller panel, temprature shows -18℃.

Technical Data:

Model TR-200
Temperature Range(In Container)

-18℃ ~ +30℃ / 0℉ ~ +86℉

Cooling Capacity 0℃/+32℉ 2200W / 2559Kcal/h / 7550 BTU

   -18℃/ 0℉

1127W / 1311Kcal/h / 3840 BTU
Compressor Model 5H11
Displacement 108cc/r
Weight



Condenser Coil

 Aluminum micro-channel parallel flow coils

Fan Spal
Dimensions 760×553×230 mm
Weight 16 kg
Evaporator Coil Aluminum foil with internal ridge copper tube
Fan Spal
Dimensions 603×538×230 mm
Weight 13 kg
Voltage DC12V / DC24V
Refrigerant R404a/1.1kg
Defrosting Hot gas defrosting(Auto./Manual)
Application 6~15m³
Optional Functions  Electric standby system AC 220V/380V, Heating System
